Judul Skripsi/TA/Project Menggunakn Raspberry PI

1.RF-ID Pengamanan Pintu Rumah

2. RF-ID Pengamanan Produk

3. RF-ID Identifikasi Nomer Keanggotaan

4. Opencv Template Matching

5. Pengendali Alat Listrik

6. Penjadwalaan Lampu dan Alat Listrik

7. Network Monitoring

8. Small IDS Control

9. Home Internet Access Control

10. Kontrol & Monitoring Level Air Menggungkan Bot Telegram pada Rumah Berbasis Raspberry PI

11. Sistem Pendeteksi Slot Parkir Berbasis Raspberry Dengan Notifikasi Telegram

Code sensor Ultrasonic

import RPi.GPIO as GPIO                    #Import GPIO library
import time                                #Import time library
GPIO.setmode(GPIO.BCM)                     #Set GPIO pin numbering
GPIO.setwarnings(False)

TRIG = 23                              #Associate pin 23 to TRIG
ECHO = 24                               #Associate pin 24 to ECHO

print "Distance measurement in progress"

GPIO.setup(TRIG,GPIO.OUT)                  #Set pin as GPIO out
GPIO.setup(ECHO,GPIO.IN)                   #Set pin as GPIO in

while True:

  GPIO.output(TRIG, False)                 #Set TRIG as LOW
  #print "Waitng For Sensor To Settle"
  time.sleep(2)                            #Delay of 2 seconds

  GPIO.output(TRIG, True)                  #Set TRIG as HIGH
  time.sleep(0.00001)                      #Delay of 0.00001 seconds
  GPIO.output(TRIG, False)                 #Set TRIG as LOW

  while GPIO.input(ECHO)==0:               #Check whether the ECHO is LOW
    pulse_start = time.time()              #Saves the last known time of LOW pulse

  while GPIO.input(ECHO)==1:               #Check whether the ECHO is HIGH
    pulse_end = time.time()                #Saves the last known time of HIGH pulse

  pulse_duration = pulse_end - pulse_start #Get pulse duration to a variable

  distance = pulse_duration * 17150        #Multiply pulse duration by 17150 to get distance
  distance = round(distance, 2)            #Round to two decimal points

  if distance > 2 and distance < 400:      #Check whether the distance is within range
    print "Distance:",distance - 0.5,"cm"  #Print distance with 0.5 cm calibration
  else:
    print "Out Of Range"                   #display out of range


MENGGUNAKAN 2 ULTRASONIC

import serial

from time import gmtime, strftime
from random import randint

import RPi.GPIO as GPIO                    #Import GPIO library
import time                                #Import time library
GPIO.setmode(GPIO.BCM)                     #Set GPIO pin numbering
import MySQLdb
GPIO.setwarnings(False)

TRIG = 23                              #Associate pin 23 to TRIG
ECHO = 24                                 #Associate pin 24 to ECHO
TRIG1 = 18                                #Associate pin 23 to TRIG
ECHO2 = 27

db = MySQLdb.connect("localhost","root","12345","db_pemesanan_parkir")
cursor = db.cursor()

st=0
st2=0
print "Distance measurement in progress"

GPIO.setup(TRIG,GPIO.OUT)                  #Set pin as GPIO out
GPIO.setup(ECHO,GPIO.IN)                   #Set pin as GPIO in
GPIO.setup(TRIG1,GPIO.OUT)                  #Set pin as GPIO out
GPIO.setup(ECHO2,GPIO.IN)                   #Set pin as GPIO in

while True:

  GPIO.output(TRIG, False)                 #Set TRIG as LOW
  #print "Waitng For Sensor To Settle"
  time.sleep(1)                            #Delay of 2 seconds

  GPIO.output(TRIG, True)                  #Set TRIG as HIGH
  time.sleep(0.00001)                      #Delay of 0.00001 seconds
  GPIO.output(TRIG, False)                 #Set TRIG as LOW

  while GPIO.input(ECHO)==0:               #Check whether the ECHO is LOW
    pulse_start = time.time()              #Saves the last known time of LOW pulse

  while GPIO.input(ECHO)==1:               #Check whether the ECHO is HIGH
    pulse_end = time.time()                #Saves the last known time of HIGH pulse

  pulse_duration = pulse_end - pulse_start #Get pulse duration to a variable

  distance = pulse_duration * 17150        #Multiply pulse duration by 17150 to get distance
  distance = round(distance, 2)            #Round to two decimal points

  R=distance - 0.5
  if R > 2 and R < 5 and st<1:      #Check whether the distance is within range
    st=1
    print "TERISI:",R,"cm"  #Print distance with 0.5 cm calibration
    tgl=strftime("%Y-%m-%d", gmtime())
    jam=strftime("%H:%M:%S", gmtime())
    ket=str(R)
    area="IA"
    status="TERISI"
    sql ="UPDATE `tb_parkir` set `tanggal`='%s', `jam`='%s', `area`='%s', `status`='%s', `keterangan`='%s' where kode_parkir='PKR1707001'" % (tgl,jam,area,status,ket)
    #print (sql)
    try:
         cursor.execute(sql)
         db.commit()
    except:
         db.rollback()


  if R> 5 and st>0:
    print "KOSONG:" ,R,"cm"                  #display out of range
    st=0
    tgl=strftime("%Y-%m-%d", gmtime())
    jam=strftime("%H:%M:%S", gmtime())
    ket=str(R)
    area="IA"
    status="KOSONG"
    sql ="UPDATE `tb_parkir` set `tanggal`='%s', `jam`='%s', `area`='%s', `status`='%s', `keterangan`='%s' where kode_parkir='PKR1707001'" % (tgl,jam,area,status,ket)
    #print (sql)
    try:
         cursor.execute(sql)
         db.commit()
    except:
         db.rollback()


  GPIO.output(TRIG1, False)                 #Set TRIG as LOW
  #print "Waitng For Sensor To Settle"
  time.sleep(1)                            #Delay of 2 seconds

  GPIO.output(TRIG1, True)                  #Set TRIG as HIGH
  time.sleep(0.00001)                      #Delay of 0.00001 seconds
  GPIO.output(TRIG1, False)                 #Set TRIG as LOW

  while GPIO.input(ECHO2)==0:               #Check whether the ECHO is LOW
    pulse_start = time.time()              #Saves the last known time of LOW pulse

  while GPIO.input(ECHO2)==1:               #Check whether the ECHO is HIGH
    pulse_end = time.time()                #Saves the last known time of HIGH pulse

  pulse_duration = pulse_end - pulse_start #Get pulse duration to a variable

  distance = pulse_duration * 17150        #Multiply pulse duration by 17150 to get distance
  distance = round(distance, 2)            #Round to two decimal points

  R=distance - 0.5
  if R > 2 and R < 5 and st2<1:      #Check whether the distance is within range
    st2=1
    print "ADA:",R,"cm"  #Print distance with 0.5 cm calibration
    tgl=strftime("%Y-%m-%d", gmtime())
    jam=strftime("%H:%M:%S", gmtime())
    ket=str(R)
    area="BI"
    status="ADA"
    #sql ="INSERT INTO `tb_parkir` (`tanggal`, `jam`, `area`, `status`, `keterangan`) VALUES ('%s', '%s', '%s', '%s', '%s') " % (tgl,jam,area,status,ket)
    sql ="UPDATE `tb_parkir` set `tanggal`='%s', `jam`='%s', `area`='%s', `status`='%s', `keterangan`='%s' where kode_parkir='PKR1707002'" % (tgl,jam,area,status,ket)
    #print (sql)
    try:
         cursor.execute(sql)
         db.commit()
    except:
         db.rollback()


  if R> 5 and st2>0:
    print "TIDAK ADA:" ,R,"cm"                  #display out of range
    st2=0
    tgl=strftime("%Y-%m-%d", gmtime())
    jam=strftime("%H:%M:%S", gmtime())
    ket=str(R)
    area="IB"
    status="TIDAK ADA"
    sql ="UPDATE `tb_parkir` set `tanggal`='%s', `jam`='%s', `area`='%s', `status`='%s', `keterangan`='%s' where kode_parkir='PKR1707002'" % (tgl,jam,area,status,ket)
    #print (sql)
    try:
         cursor.execute(sql)
         db.commit()
    except:
         db.rollback()




Install VNC Server in Raspberry PI

Setting up your Raspberry Pi

VNC Connect is included with Raspbian but you still have to enable it.

First, run the following commands to make sure you have the latest version of VNC Server and VNC Viewer:

sudo apt-get update
sudo apt-get install realvnc-vnc-server
sudo apt-get install realvnc-vnc-viewer

If you’re already using an older version of VNC Server, restart it. If not, and you’re already booted into the PIXEL desktop, select Menu > Preferences > Raspberry Pi Configuration > Interfaces and make sure VNC is set to Enabled.

Alternatively, run the command sudo raspi-config, navigate to Advanced Options > VNC and select Yes.

reff: https://www.realvnc.com/en/connect/docs/raspberry-pi.html

Konfigurasi Sensor Vibration on Rapberry PI

SCHEMATIC:

Python Code:

#!/usr/bin/python
import RPi.GPIO as GPIO
import time

#GPIO SETUP
channel = 17
GPIO.setmode(GPIO.BCM)
GPIO.setup(channel, GPIO.IN)

def callback(channel):
        if GPIO.input(channel):
                print "Gerakan Terdeteksi!"
        else:
                print "Gerakan Terdeteksi!"

GPIO.add_event_detect(channel, GPIO.BOTH, bouncetime=300)  # let us know when the pin goes HIGH or LOW
GPIO.add_event_callback(channel, callback)  # assign function to GPIO PIN, Run function on change

# infinite loop
while True:
        time.sleep(1)



reff : http://www.piddlerintheroot.com/vibration-sensor/

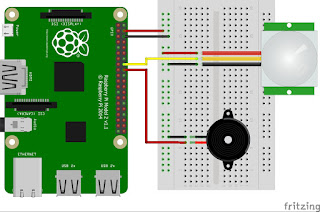

Konfigurasi Sensor PIR on Rapberry PI

How it Works

PIR (passive infrared) motion sensor detects any movement of objects, human or animals. Mostly they are used in automatically activated lighting and burglar alarm systems.

Every object with temperature above absolute zero emit heat in the form of infrared radiation. PIR motion sensor detects change in the infrared radiation impinging on it. When any object or human passes in the front of the PIR sensor, the temperature in sensor’s field of view will rise from ambient temperature to object temperature and then back again to ambient temperature. PIR sensor converts this temperature change into the change in output voltage and that change in voltage is considered as motion detected.

Components

PIR Sensor

1 / 2 • PIR Sensor

PIR Sensor

Sensor

Sensor has three pins. Power (VCC), Ground (GND) and output (OUT) pin which gives logic high if motion is detected. It has two potentiometers. One for sensitivity adjustment and second for adjusting the time the output signal stays high when motion is detected.

VCC, OUT and GND pins

Potentiometers to adjust Sensitivity and Output Time

Python Code :

import RPi.GPIO as GPIO

import time

GPIO.setmode(GPIO.BCM)

GPIO.setup(23, GPIO.IN) #PIR

GPIO.setup(24, GPIO.OUT) #BUzzer

try:

    time.sleep(2) # to stabilize sensor

    while True:

        if GPIO.input(23):

            GPIO.output(24, True)

            time.sleep(0.5) #Buzzer turns on for 0.5 sec

            GPIO.output(24, False)

            print("Motion Detected...")

            time.sleep(5) #to avoid multiple detection

        time.sleep(0.1) #loop delay, should be less than detection delay

except:

    GPIO.cleanup()

reff : https://www.hackster.io/hardikrathod/pir-motion-sensor-with-raspberry-pi-415c04
